3 projects for internal protection of tanks. View the technical data!

corrosion protection for tanks



In the following lines you can see the corrosion protection systems that have been applied inside the tanks, produced by one of the top competitors in the European market. The measures are designed to maintain long-term quality of the steel structure for many types of aggressive substances storage tanks.





Project nr.1



Double-wall steel tank for underground storage

Volume:  80 m³ (devided in 2 x 25 m³ and 3 x 10 m³), diameter 2,9 m

Coating Product:  Proguard CN-OC

Layer Thickness: 800 µm, applied in 2 layers by airless spraying

Product Requirements: Extreme chemical resistance



corrosion protection for tanks



Project nr.2



Double-wall steel stank for overground storage of methanol/ethanol

Volume: 30 m³, diameter 2 m

Coating Product: Proguard CN 200 a.s.

Layer Thickness: 600 µm, applied in 2 layers by airless spraying

Product Requirements:  High chemical resistance, antistatic properties



corrosion protection for tanks

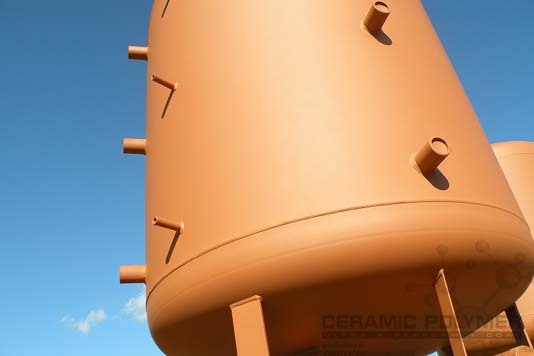

Project nr.3



Storage tank for water

Volume: 4 m³, diameter 1,6 m

Coating Product: Proguard CN 200

Layer Thickness: 1.000 µm, applied in 2 layers by airless spraying

Product Requirements: Pressure resistance (max. 6 bar), temperature stability (max. 110°C)



corrosion protection for tanks





If you need a specialized team for applying chemical resistant coating, contact us! We guarantee that you will have the benefit of an applicantion process that meets all standards.
